Lighting Tutorial


Intro:

We seek to keep low lit aisles and dark ceilings so that effective individual booth lighting can add a higher level of quality to the visual appeal. The improvements in overall ambiance of the sales floor over the past decade makes it evident that the Lighting Tutorial has been working to our advantage.  It is essential that we continually improve to keep our patrons excited about the show. We’ve updated our tutorial to address new issues that have arisen and give more tips on the best lighting for our environment. We want you to advance your skills in overcoming competing visuals and crowd distractions with effective lighting.

Good lighting benefits everyone. Every improvement someone makes is good for themselves and all their neighbors.

The need: We created this lighting tutorial when it became apparent that some of our artists were experiencing avoidable sales declines due to lighting errors by themselves or their neighbors. At the same time, we needed to act to preserve that warm, cozy, and softly lit ambiance that adds charm to our show.

It is important at the Armadillo to be effective in highlighting your work, avoiding visual distraction, and allowing your customer’s eyes to relax and appreciate the quality of your work leading to more sales for you.


Overview:

Do:

  • Keep your light on your art and away from aisles, neighbors, and customer’s eyes.
  • Use directional light sources and sufficient cowling on fixtures to control beam.
  • Use swing-arm lamps on wall ends at aisles.
  • Have an ample support system to provide stability for lighting components.
  • Use the Armadillo Wiring Guide.
  • Keep It Safe.

Do Not:

  • Bring attention to lighting components unless you are selling them
  • Use non-directional light sources
  • Aim your lights at the aisle, over wall tops, or at ceiling

Armadillo Lighting Goal

Our goal is for each of you to put the most attractive quality and quantity of light on your product, while at the same time we expect you to:

  • Comply with all Armadillo and City of Austin safety requirements.
  • Block light beam from going over or around your wall into your neighbor’s booth or aisles.
  • Avoid eye bite on and around the artwork/merchandise and in the aisles.
  • Reduce the level of light bleed that illuminates the ceiling.
  • Enhance the low-lit, warm, and cozy ambiance of the room.

Lighting Concepts

Eye Bait: Everything you do to attract the customer’s eyes to your work. Your goal is to create an alluring presentation. You want the customers to focus their attention on your display long enough to appreciate the originality, skill, workmanship, and care that went into creating your merchandise. Effective lighting highlights the quality and appeal of your presentation. Your lighting must allow the customer’s eyes to be comfortable while approaching your work. Lighting can be a big factor in reaching your sales potential. Your lighting fixtures should mostly disappear while their effect makes the artwork glow to illuminate the room.

Eye Bite: Any unintended lighting effect, which causes the eye to divert. Just as eye bait makes the patron’s eyes comfortable and attracts them to your work, eye bite irritates the eyes and turns them away from your display. It can be as simple as a minor irritation from a vent on the side of a track fixture. Under our low light conditions, catching the business end of a light bulb right in the eye is a noticeable and discomforting experience. Eye bite will reduce customer interest in your display. Most eye bite can be reduced significantly, but rarely eliminated entirely.

The following are common sources of eye bite:

  • Uncontrolled beam angle
  • Misdirected light
  • Side bleed
  • Too much light on a product, especially on a high gloss surface
  • Miscellaneous (facility lighting, sunset, neighboring booths)

Controllable Distraction: Some distractions are not in your control.

Pay attention to the ones that you can do something about:

  • Clash with your eye bait
  • Distract the customers’ attention away from your work
  • Diminish your customers’ perception of value for your work
  • Cause your customers to feel uncomfortable or unsafe

Pay attention to these issues to reduce your eye bite:

  • Beam spread/angle of beam projection (look at the beam chart below for reference)
    • Hard beam edges on halogen vs. soft beam edges on LED
  • Beam control/cowling
  • Side and back light leakage through vents
  • Distracting shadows and reflections

We know eye bite cannot be eliminated completely. We want artists to endeavor to put their best light focused on their work, while containing your beam spread within and around your booth.


Variables and Aspects of Lighting

Please pay attention to these variables to get better performance from directional light sources.

Five variables that will affect your light:

  • Angle refers to the degree of light spread emitting from a bulb
    • Hard edges on halogen allow no eye bite outside of edge
    • Soft edges on LED bulbs require additional cowling to contain eye bite
  • Direction refers to the angle of strike as light beam hits artwork
  • Distance controls how much space a light beam has available to spread out on the artwork
  • Intensity refers to the lumen output, brightness of the light
  • Color refers to Kelvin temperature

Kelvin Temperature

For reference, true direct sunlight outdoors is about 4,600k.

  • Warm Light – 2700 to 3000 Kelvin is slightly yellow
    • Package says “Soft White”
    • Typical household lighting
    • Works well on fabric, wood, or paper
    • Reduced visibility of flaws on surfaces
    • Comfortable on eye
  • Natural Light – 4000 Kelvin is a truer white
    • Typical gallery lighting
    • Works well on metals, glossy glazes and paint
    • Shows some flaws on surfaces
    • Not discomforting to the eye
  • Day White – 5000 Kelvin is slightly blue
    • Often called “Stark White”
    • Typical for a medical examination room
    • Shows subtle color differences
    • Easily shows flaws on surfaces
    • Can be discomforting to eye
  • Cool Light – 7000K is very blue
    • Package says “Daylight”
    • Recommended for specialized lighting only
    • Shows extremely subtle color differences
    • Brings out minor flaws on surfaces
    • Harsh on eyes

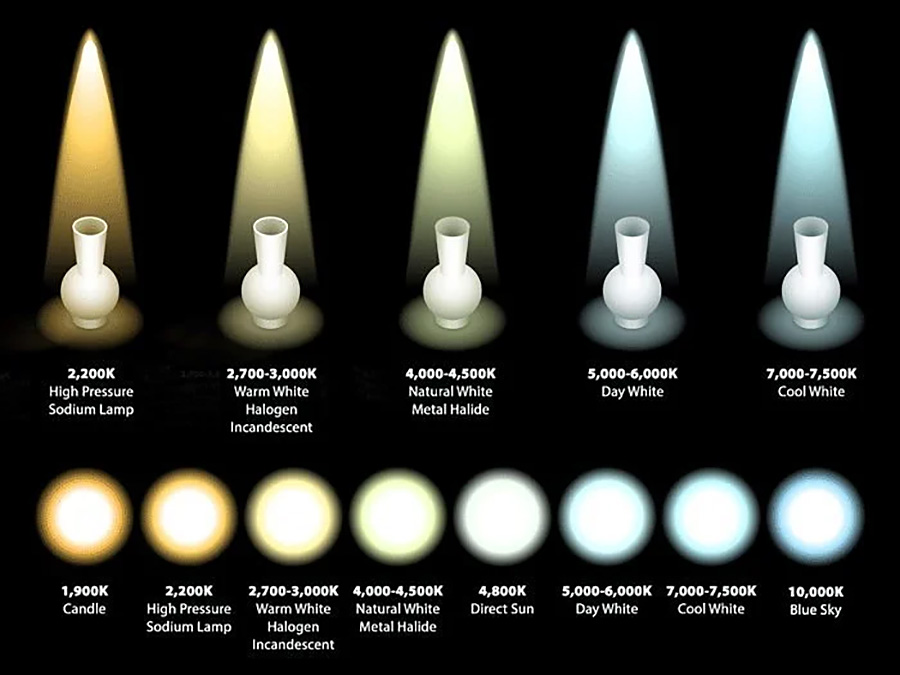

Kelvin Color Charts

Beam Spread Chart

Troubleshooting

Troubleshooting 1: Over the Wall Top

Goal: To have an even spread of light on my wall top so my items that are hung high have the best visual impact.

Means: Raising light fixtures.

Issue: Light beam passes over wall top to cause problems in the aisles and for neighbors.

Possible Solution:  Lightweight nearly invisible black matte board height extender panels can be seen at the seams (arrows). These contain the tops of light beams. Remember to provide a finished look on both front and back sides as to avoid visual distraction to neighbors.

Black height extender panels protect neighbors from harmful light intrusion over the wall top.
Detail of height extender panel assembly.

Troubleshooting 2: Wall Ends at Aisle

Goal: To have an even spread of light on my wall ends at aisle so my items displayed there have better visual impact.

Means: Aiming a front perimeter track light at the area.

Issue: Large segment of the light beam is aimed into the eyes of approaching patrons causing major eye bite.

Possible Solution: Use two of the Alvin swing-arm lamps. One placed at tip of wall top, angled out and into the aisle, focused back into the upper wall. A second Alvin mounted 24” to 30” away from wall end, angled out and slightly toward back wall, and focused back on the lower segment of the wall end. The wall end will be well lit, and the light spill will hit the aisle at knee level. No eye bite.


Troubleshooting 3: Front Perimeter Panel or Column

Goal: To have an even spread of light on my aisle front display columns or single panel so my items displayed there have better visual impact.

Means: Aiming track lights and swing-arm lamps from various angles.

Issue: Misdirected light right in the face of approaching customers is counterproductive to sales.

Possible Solution: Use the Alvins here just like you would on the wall ends at aisle. Carefully aim light beams to avoid hitting aisles at eye level. Use bulbs with a tighter beam spread if needed.

Fixture pointed at interior wall display misdirects light into booth entrance at eye level.

Troubleshooting 4: Corner Display and Hanging Items

Goal: To have an even spread of light on the aisle side of my front corner display fixture, columns hanging items, or single panel so my items displayed there have better visual impact.

Means:  Aiming track lights and swing-arm lamps from various angles.

Issue: Misdirected lights. Poor lighting on the side toward customer approach. The most common issue is customers see the shadow side while getting the light in the face.

Possible Solution: Extend 2×2 lumber truss out above and past the corner for mounting light fixtures in a position as to focus down and in on the corner. Use Alvins with directional bulbs so light falls on the aisle side of the display.

Hanging items, like the earring racks in the photo, are especially tricky as there is no close backstop to stop the light beam. Pay attention that the angle of strike so the light beam hits artwork at an effective angle toward the floor. Spotlight bulbs with very narrow beams may be needed in some cases.

Corners are tricky. This hanging rack works because the artist uses a combination of tightly controlled beam spread fixtures and precisely directed angles of strike.

Troubleshooting 5: Front Perimeter Sign

Goal: To have an even spread of light on my front perimeter mounted sign so it will have visual impact.

Means: Aiming Alvin swing-arm lamps from various angles.

Issue: Uneven light on the sign with misdirected light in the aisles.

Possible Solution: Consider moving your sign to an inside wall and adjust size as appropriate.

It is very difficult to get an even wash of light across a small front perimeter sign. Doing so on large signs does not work.

Troubleshooting 6: Hard Shadows on Walls and Under Shelves

Goal:  To add even light on areas to reduce distracting harsh shadows and make my shelves look better.

Means: Aiming more light from a distance at the area.

Issue: Just made the shadows look darker.

Possible Solution: Overlap light beams from different angles on wall and use undershelf lighting pods on dark shelves.

Before: Dimly lit spaces under shelves are easy for customers to miss.
After: Undershelf lighting brings attention to items displayed here.

Troubleshooting 7: Beam Spread Control for LED Bulbs

Goal:  Use my existing fixtures with a change from halogen to LED bulbs.

Means: Switch bulbs.

Issue: Fixture cowl no longer effective to control beam edges.

Possible Solution: Attach non-flammable cowl extenders.

Nonflammable cowl extenders control beam edge for LED bulbs.
Detail of nonflamable cowl extender.

Simple Hack for Better Results:

Example of a big improvement by removing a visual distraction:

Before & After

Strong visual distraction from using white lighting components on black truss. Misdirected swing arm is on the left.
Barely noticeable black lighting components do not compete with artwork for visual attention.

Examples of Lighting Errors to Avoid

Please do not be a nuisance to your neighbor by allowing your lights to go over or around your walls.

Eye bite comes from high mounted fixtures with cowling on the far side of wall. Lights on the close side are configured too low to compensate for lack of cowling.
Neighbor's misdirected lights distract from the aesthetic appeal of this display.
Unwanted eye bite from neighbor's mis-directed swing arm lamp with a non-directional bulb. Also visual distraction from white track lighting components.
Mixed color lamp parts with large white paper cowl extenders place a big visual distraction right out in front.
Mixed color lamps, some with large white paper cowl extenders, draw the eye away from dimly lit undershelf artwork.
White lighting cowls top the list of visual distractions followed by too much greenery and small Christmas lights.
Black fixtures are less noticeable that white ones.

Eye Bite Warning: Do not aim a front perimeter track light at a side wall end on the aisle.

Use swing arm lamps for lighting wall ends at aisles because your front track fixtures will cause customers to look away.
Uncomfortable eye bite from mis-directed front perimeter track fixture will turn customers' eyes away from display.
Hand shows the intensity of a misdirected light beam in the aisle at eye level.

Eye Bite Warning:  Standard MR16 bulbs in vented fixtures will bleed unwanted light out of the vent.  Either buy unvented fixtures or use high-temperature automotive exhaust manifold paint on the bulb sides.

Most MR16 halogen bulbs throw intense light from their sides and back.
Most MR16 halogen bulbs in open sided fixtures with generate a lot of eyebite.
Untreated MR16 halogen bulb as seen through a side vent in low light.

Eye Bite Warning: Using non-directional bulbs to light a corner display is counterproductive to sales.

Using non-directional bulbs to light a corner display causes eye bite in the aisles in every direction.
Non-directional bulbs put out so much side light that the Alvin double baffle swing arm lamps can't control the beam effectively.

Eye Bite Warning: Avoid Non-Directional light bars

Ouch!

Lights mounted too close or there is just too much light in the booth makes it more difficult for patrons to appreciate the quality of the work.

Avoid having distracting glare areas on your work by using 2x2 wooden truss bars so lighting can be mounted at an even distance from your work.
Having too much light can be almost as bad for sales as using too little.

Popular Lighting Components for Armadillo

Showing Only Black — White Components Are Available

If configured correctly, these components can work at the Armadillo.



Track

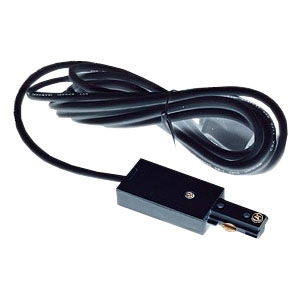

Track End Power Feed and Cord – BLACK

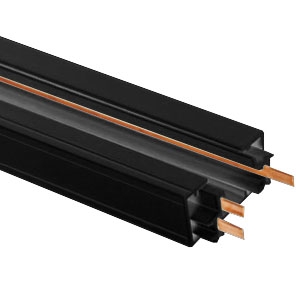

4′ Black Power Track4′ Black Power Track

Track Fixtures for PAR20 Bulbs

Best price for quality

Step-down Cylinder
https://www.1000bulbs.com/product/173520/PLT-10220.html

Best Alternative

Continental Step Cylinder
https://www.1000bulbs.com/product/4165/NORA-NTH103B.html


PAR20 Bulbs

LED

Warm Light – 2700 to 3000 Kelvin

PLT 500 Lumens – 7 Watt – 3000 Kelvin – LED PAR20 Lamp

50 Watt Equal – 40 Deg. Flood – Dimmable – 120 Volt – PLT Solutions – PLT-11140
https://www.1000bulbs.com/fil/products/203856

500 Lumens – 7 Watt – 3000 Kelvin – LED PAR20 Lamp

Euri 50 Watt Equal – 40 Deg. Flood – Dimmable – 120 Volt – sold by 2 Pack – Euri Lighting EP20-7W6000e-2

Natural Light – 4000 Kelvin

PLT Natural Light – 500 Lumens – 5.5 Watt – 4000 Kelvin – LED PAR20

50 Watt Equal – 40 Deg. Flood – Dimmable – 90 CRI – 120 Volt – PLT Solutions – PLTS-12026
https://www.1000bulbs.com/product/221939/PLTS-12026.html

Stark White Light – 5000 Kelvin

PLT 500 Lumens – 7 Watt – 5000 Kelvin – LED PAR20 Lamp

50 Watt Equal – 40 Deg. Flood – Dimmable – 120 Volt – PLT Solutions – PLT-11142
https://www.1000bulbs.com/fil/products/203858

Euri 500 Lumens – 7 Watt – 5000 Kelvin – LED PAR20 Lamp

50 Watt Equal – 40 Deg. Flood – Dimmable – 120 Volt – sold by 2 Pack – Euri Lighting EP20-7W6050e-2
https://www.1000bulbs.com/product/222346/IRT-10369.html

Swing Arm Lamp
Alvin G2540-B, black with a DOUBLE BAFFLE for glare reduction.

Full view of Alvin Arm Lamp. Use for tricky wall ends at aisles or on the interior side of front perimeter panels.
Close up of the double baffle

If you use a halogen 40 Deg. flood with a flat nubby head, you won’t need the double baffling.  With any other type of bulb, the double baffling is the best solution to reduce side beam spread in critical areas.


Undershelf Lighting
6 pack with 14 brightness settings & 3 different Kelvin temps


14AWG Power Cords
Correct gauge and configuration for Armadillo use


A Note and Caution for Pro Panel Lighting

The overall effect of lighting at the Armadillo Christmas Bazaar, featuring dark ceilings, dimly lit aisles, minimum glare, and brightly lit artwork makes a huge difference in the sales potential for each individual artist.

This effect is achieved by having every participant follow Armadillo lighting standards.

Beam edges need to be made controllable.  This can be accomplished by using bulbs of 500 Lumens or less with a 40-degree or less beam spread, fixtures with cowling, track lighting hung below the wall top, effective lighting angles, 32” arm lamps for wall surfaces closest to the aisles, and a larger number of fixtures selectively aimed.  Some components work a lot better than others.

At the Armadillo, we require artists to use only lighting components that can be configured so that the bright part of any bulb cannot be seen at eye level from anywhere in an aisle, over a wall top, or in neighbor’s booth space.

Using ProPanel lighting components to create this effect can prove to be either very challenging or impossible, depending on the components used and the manner in which they are applied.

About ProPanel Lighting components at Armadillo:

ProPanel is well known for having excellent display panels and accessories ideally suited for use within a professional art tent in an outdoor setting.  Their components also work well in an indoor facility with plenty of diffuse overhead lighting.  Their panels, furnishings, and most accessories have been used with great success at Armadillo for years.

https://www.pinterest.com/propanels/pro-panel-booths-at-2016-armadillo-christmas-bazaa/

Their lighting components are different.

ProPanel lighting is carefully designed to work under a white tent top.  It appears that their intention is to fill a need to illuminate the maximum amount of art display space with the fewest bulbs and the lowest power draw. Their components are well suited for that purpose.

Components designed for use under a white tent top or well-lit exhibition center can be counterproductive to the overall Armadillo lighting ambiance

ProPanel Lighting Components:

ProPanel Fixtures: These lighting fixtures are designed without beam spread limiting cowling because their system is intended to use the tent top to capture the beam spill and reflect it back in a diffuse manner, over the art.  This design is not suitable for attaching additional cowling.

ProPanel Bulbs: These bulbs are designed with a wide 60-degree beam spread to cover more display space and an intensity of 1000 Lumens.  These are difficult to use in the Armadillo environment because of high intensity and wide beam spread.

ProPanel Tracks: These track mounts are designed to stand tall, higher than wall tops, well up into the tent canopy to provide more distance for the beam to spread and more tent top reflection.  Without a tent top to catch the beam, the light is prepositioned over the wall top, shining right into your neighbor’s space or an aisle.

Do not plan on using this type of track holder at the Armadillo unless you provide an additional light beam blocker as shown in the lighting tutorial section, Troubleshooting 1.

ProPanel Arm Lamps: (both single panel and/or double panel, both set length and/or telescopic)

These are designed to illuminate one or two panels from a position close to a display wall, right at the level of the wall top.

A few Armadillo artists have achieved some success with limited application lighting two-dimensional art and careful placement of these arm lamps.

This tricky application worked correctly when the artist aimed his side and back wall lights almost straight down, slightly tilted just a few degrees inward and away from the aisle.  Lighting art near the wall ends at the aisles was the biggest challenge to get right.


Just a little change in the angle of the focus produces a different and undesirable effect allowing the light beam edge to spill into the aisle.


Generally, this lighting configuration and its components are not encouraged for use at Armadillo because of the limited application and the skill level needed to achieve the precise focus to keep the beam contained.

Occasionally, this approach may be appropriate for artist with 2D work with distinctive texture, such as carved paint, due to the effect that steeply angled light would have on the work.  The best result would come from having enough fixtures to always point the light straight down as to avoid having to angle any of the beams sideways.

Recommended Alternatives:

Track Fixture

Fixture – Step-down Cylinder – Black   $12.38 In stock 090823

https://www.1000bulbs.com/product/173520/PLT-10220.html

Swing Arm Lamp

Globe 32” $20.55 In stock 090823

https://www.amazon.com/Globe-Electric-56963-Multi-Joint-Metal/dp/B00HX2EVPS/ref=asc_df_B00HX2EVPS/?tag=hyprod-20&linkCode=df0&hvadid=167144278306&hvpos=&hvnetw=g&hvrand=9579411094857241225&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9028309&hvtargid=pla-272858782493&th=1

LED Bulbs

3000K

PLT 500 Lumens – 5.5 Watt – 3000 Kelvin – LED PAR20 Lamp $2.72 In stock 090823

https://www.1000bulbs.com/fil/products/203856

4,000K

PLT 500 Lumens – 5.5 Watt – 4000 Kelvin – LED PAR20 Lamp $2.72 In stock 090823

https://www.1000bulbs.com/product/221939/PLTS-12026.html

Pre-Check: Please check with Bruce first if you are planning to use ProPanel lighting components at the Armadillo.  Indicate the components that you want to use and how you plan to configure them to comply with Armadillo Lighting standards.


Sample Booth Lighting and Wiring Plan

Example Lighting Plan Binder1

ACB Wiring Guide

LED Beam Spread Issue
